- Rated Input 10 W
- Rated Impedance 100 V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
- 70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
- Sensitivity 90 dB (1 W, 1 m)
- Frequency Response 120 Hz - 20 kHz
Price: 0
- Rated Input 6 W
- Rated Impedance 100 V line: 1.7 kΩ (6 W)
- 70 V line: 1.7 kΩ (3 W)
- Sensitivity 90 dB (1 W, 1 m)
- Frequency Response 120 Hz - 18 kHz
- Speaker Component 12 cm (5") cone-type
Price: 0
- Rated Input 6 W
- Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W)
- 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)
- Sensitivity 90 dB (1 W, 1 m)
- Frequency Response 120 Hz - 18 kHz
- Speaker Component 12 cm (5") cone-type
Price: 0
- Rated Input 15 W
- Rated Impedance 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
- Frequency Response 300 Hz - 5.5 kHz
- Sensitivity 104 dB (1 W, 1 m)
- Weight 4.9 kg
Price: 0
- Rated Input 15 W
- Rated Impedance 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
- Sensitivity 104 dB (1 W, 1 m)
- Frequency Response 350 Hz - 4.5 kHz
Price: 0
- Frequency response 180 Hz - 20 kHz
- Sensitivity (1 W, 1 m) 88 dB
- Rated input (100 V) 3 W
- Tappings (100 V) 3 / 1 W (100 V)
- Dimensions 180 x 120 mm (Ø x D)
- Finish ABS resin, traffic white (RAL 9016 or equivalent)
- Operating temperature -10 °C to +50 °C
- Weight 0.7 kg
Price: 0
- Enclosure Completely sealed type
- Rated Input 5 W
- Rated Impedance 100 V line: 2 kΩ (5 W), 70 V line: 2 kΩ (2.5 W)
- Sensitivity 87 dB (1 W, 1 m)
- Frequency Response 150 Hz - 20
Price: 0
- Rated Input 3 W
- Rated Impedance 100 V line: 3.3 kΩ (3 W), 10 kΩ (1 W)
- 70 V line: 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
- Sensitivity 87 dB (1 W, 1 m)
- Frequency Response 150 Hz - 20 kHzkHz
Price: 0
- Model: GS-302
- Dimensions: φ270×335mm
- Weight:2.4 kg
- Sensitivity:87dB(1W,1m)
- Frequency:100-8,000Hz
Price: 0

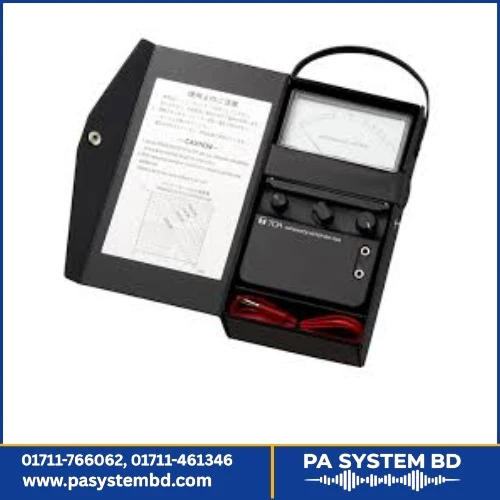

- Power Source R6 × 4 (1.5 V DC × 4)
- Current Consumption 39 mA
- Reading Direct reading meter, unit: Ω
- Measurement Range × 1 range: 5 Ω - 1 kΩ
- × 10 range: 50 Ω - 10 kΩ
- × 100 range: 500 Ω - 100 kΩ
- Accuracy ±10 %
- Weight 700 g (1.54 lb) (including carring case, without batteries)
Price: 0

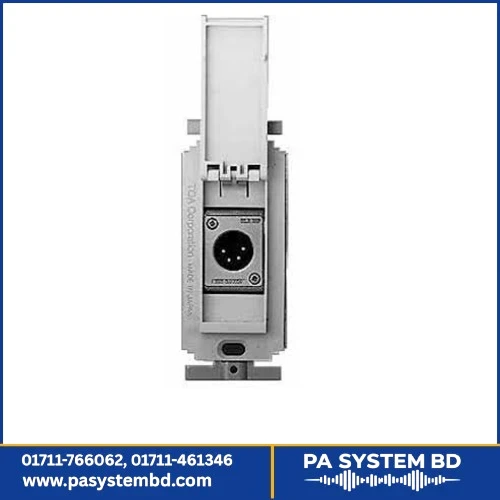

- Connector XLR-4-32-F77
- Current Capacity 10 A (AC)
- Usable Cable 600 V vinyl-insulated cable with diameter of 0.8 〜 1.6 mm or sectional
- area of 0.9 〜 2.0 mm
- Usable Plate YP-1AF
- Usable Plug XLR-4-11C
- Finish Cover : ABS resin (off white)
- Frame : Steel plate (t=1.2)
- Dimensions 45 (W) × 110 (H) × 53 (D) mm
- Weight 80 g
- Accessory Screw M4 × 35……2
Price: 0
- Connector XLR-4-31-F77
- Current Capacity 10 A (AC)
- Usable Cable 600 V vinyl-insulated cable with diameter of 0.8 〜 1.6 mm or sectional
- area of 0.9 〜 2.0 mm
- Usable Plate YP-1AF
- Usable Plug XLR-4-12C
- Finish Cover : ABS resin (off white)
- Frame : Steel plate (t=1.2)
- Dimensions 45 (W) × 110 (H) × 53 (D) mm
- Weight 95 g
- Accessory Screw M4 × 35……2
Price: 0
- Applications YM-1J, YM-3CF, YM-3CM, YS-4CF, YS-4CM
- Finish Aluminum t1.2, Hairline
- Dimensions (W×H×D) 70(2.76") × 120(4.72") × 6(0.24") mm
- Weight 25 g (0.06 lb.)
Price: 0
- Input Capacity 200 Watt
- Attenuations 8 steps (0 dB, -3 dB, -6 dB, -9 dB, -12 dB, -15 dB, -18 dB, OFF)
- Override Indicator Red LED (4-wire connection only)
- Overriding Voltage 24V DC, 11mA (4-wire connection only)
- Dimensions 86 (W) × 86 (H) × 51 (D) mm
- Weight 0.49kg
Price: 0
- Input Capacity 120 Watt
- Attenuations 8 steps (0 dB, -3 dB, -6 dB, -9 dB, -12 dB, -15 dB, -18 dB, OFF)
- Override Indicator Red LED (4-wire connection only)
- Overriding Voltage 24V DC, 11mA (4-wire connection only)
- Dimensions 86 (W) × 86 (H) × 51 (D) mm
- Weight 0.48kg
Price: 0
- Input Capacity 60 Watt (Max)
- Attenuations 8 steps (0 dB, -3 dB, -6 dB, -9 dB, -12 dB, -15 dB, -18 dB, OFF)
- Override Indicator Red LED (4-wire connection only)
- Overriding Voltage 24V DC, 11mA (4-wire connection only)
- Dimensions 86 (W) × 86 (H) × 51 (D) mm
- Weight 0.46kg
Price: 0
- Input Capacity 30 Watt (Max)
- Attenuations 8 steps (0 dB, -3 dB, -6 dB, -9 dB, -12 dB, -15 dB, -18 dB, OFF)
- Override Indicator Red LED (4-wire connection only)
- Overriding Voltage 24V DC, 11mA (4-wire connection only)
- Dimensions 86 (W) × 86 (H) × 51 (D) mm
- Weight 0.45kg
Price: 0
- Input Range 0.5 W - 60 W
- Attenuation 5 steps (0 dB, -6 dB, -12 dB, -18 dB, OFF)
- Applicable Cable 600 V vinyl-insulated cable (Indoor Vinyl or Heat-resistant Indoor Vinyl cable)
- Solid cable: φ0.8 (0.03") - φ1.6 (0.06") mm
- Terminal Push-in connector
Price: 0
- Input Range 0.5 W - 60 W
- Attenuation 5 steps (0 dB, -6 dB, -12 dB, -18 dB, OFF)
- Applicable Cable 600 V vinyl-insulated cable (Indoor Vinyl or Heat-resistant Indoor Vinyl cable)
- Solid cable: φ0.8 (0.03") - φ1.6 (0.06") mm
- Terminal Push-in connector
- Operating Temperature -10 ℃ to +50 ℃
Price: 0
- Input Range 0.5 W - 30 W
- Attenuation 5 steps (0 dB, -6 dB, -12 dB, -18 dB, OFF)
- Applicable Cable 600 V vinyl-insulated cable (Indoor Vinyl or Heat-resistant Indoor Vinyl cable)
- Solid cable: φ0.8 (0.03") - φ1.6 (0.06") mm
- Terminal Push-in connector
Price: 0
